GBL+GDOP1, GBP+GDOL1

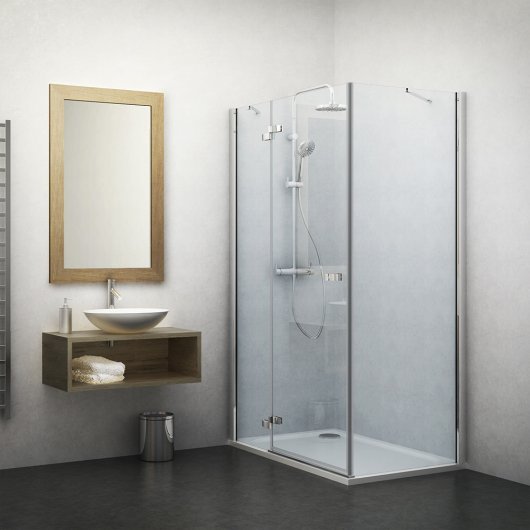

This frameless shower enclosure will enchant you with its simple elegance and modern purity. Single opening door provides a comfortable entrance into the shower. Specially developed Easy Install profiles ensure easy installation and tight connection of glass to the wall. Side panel and door are made of 8 mm safety glass treated with RothETC surface coating.
GBL+GDOP1, GBP+GDOL1

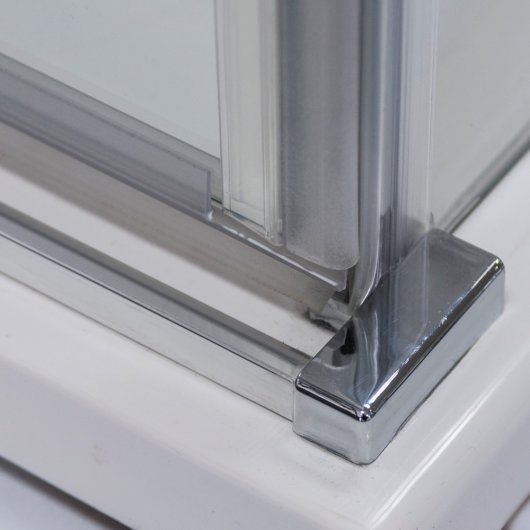

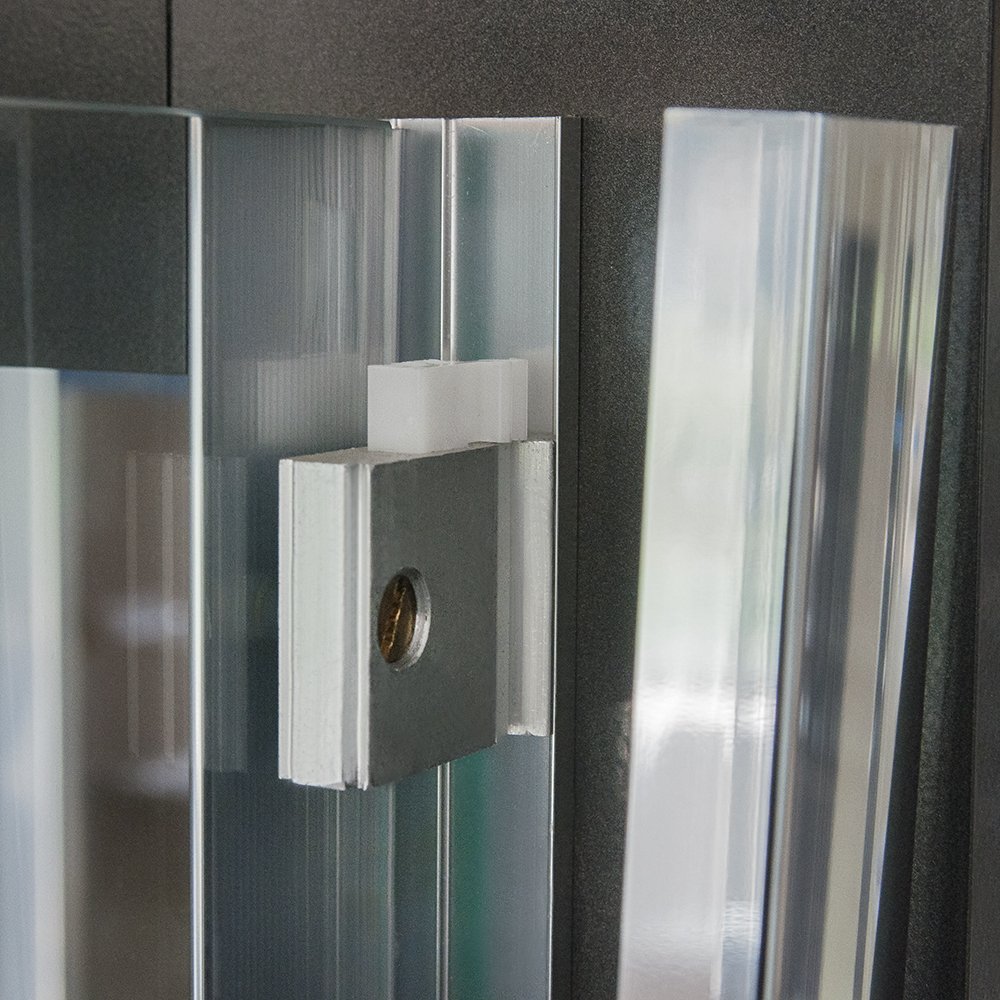

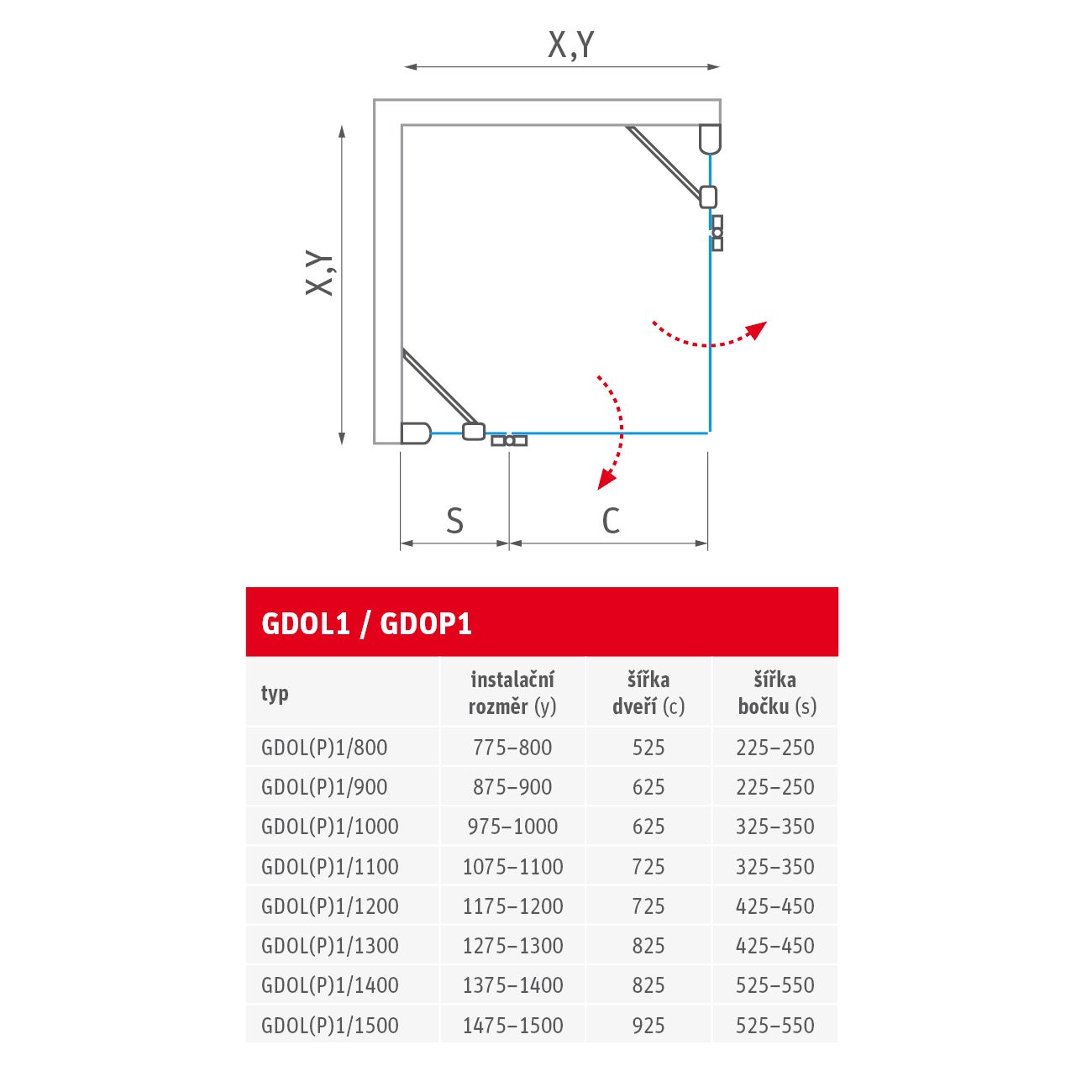

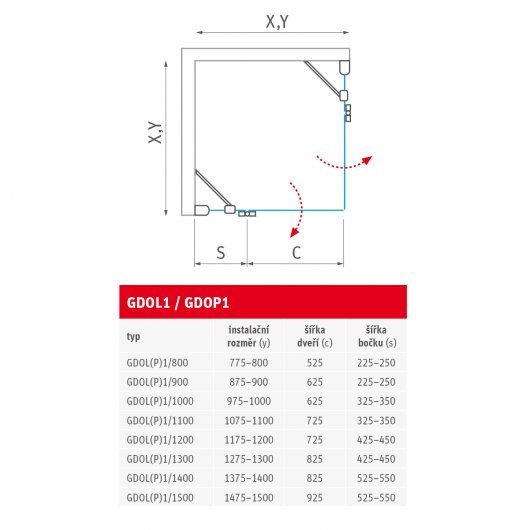

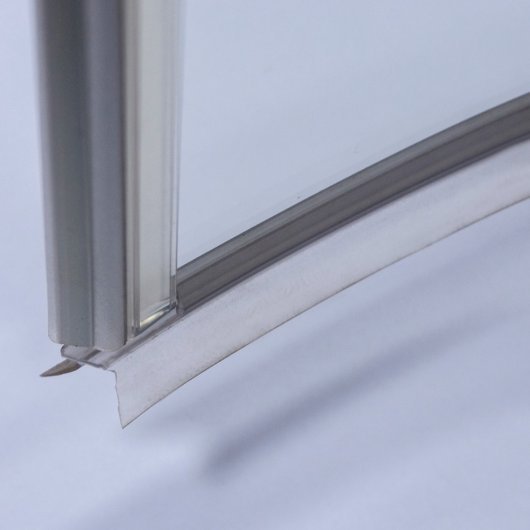

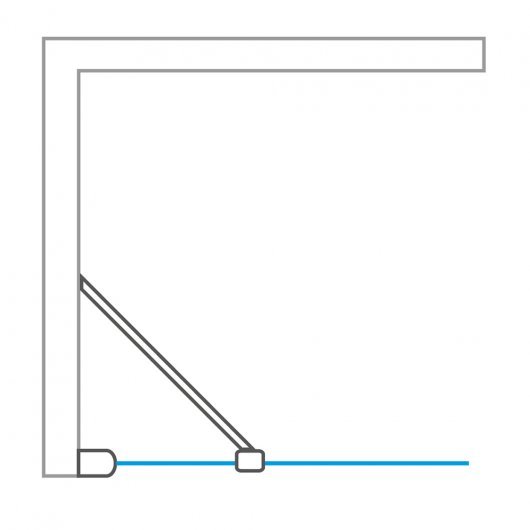

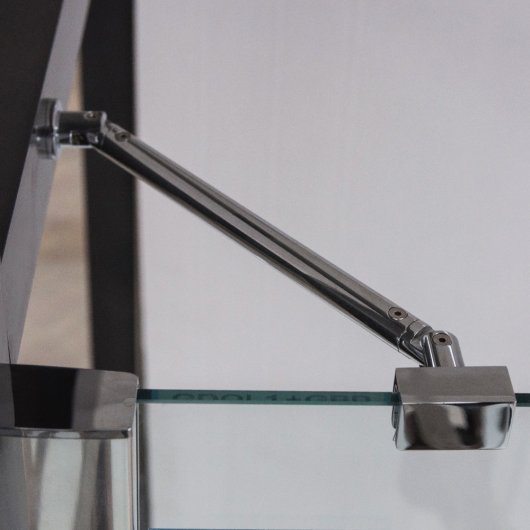

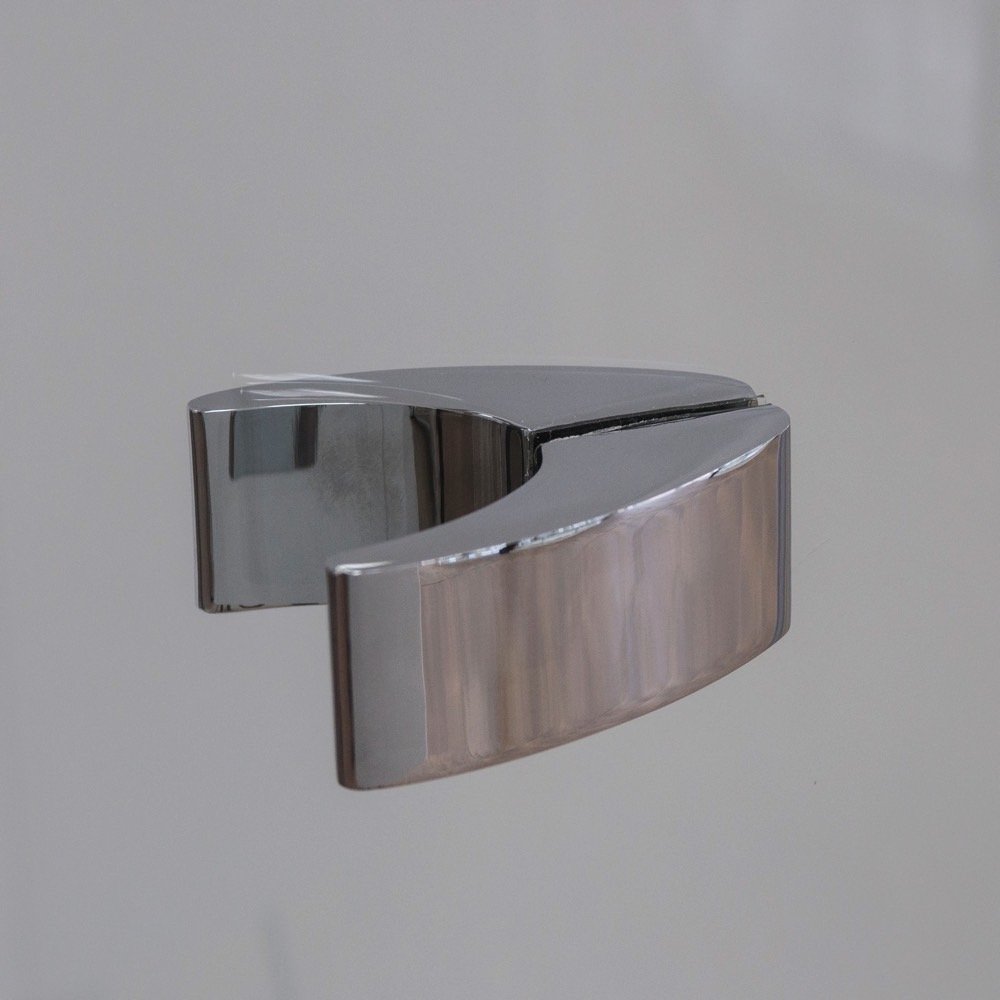

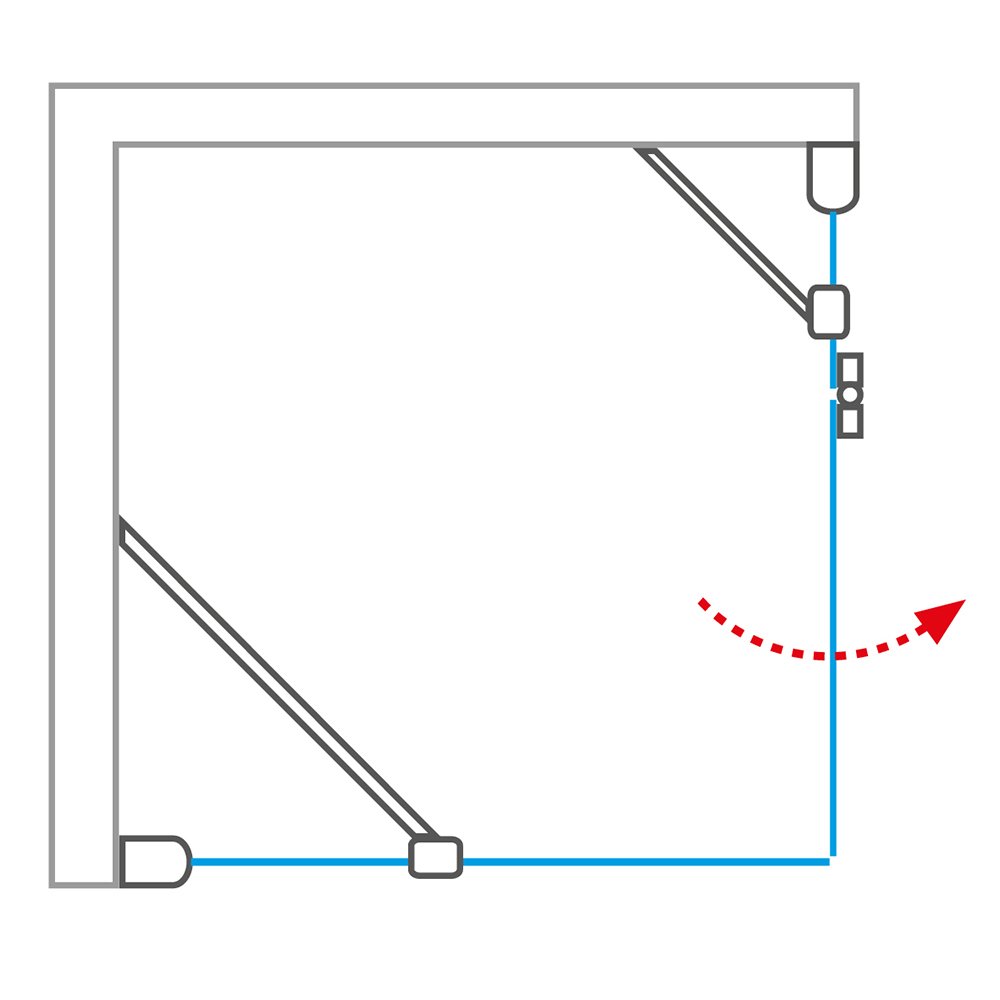

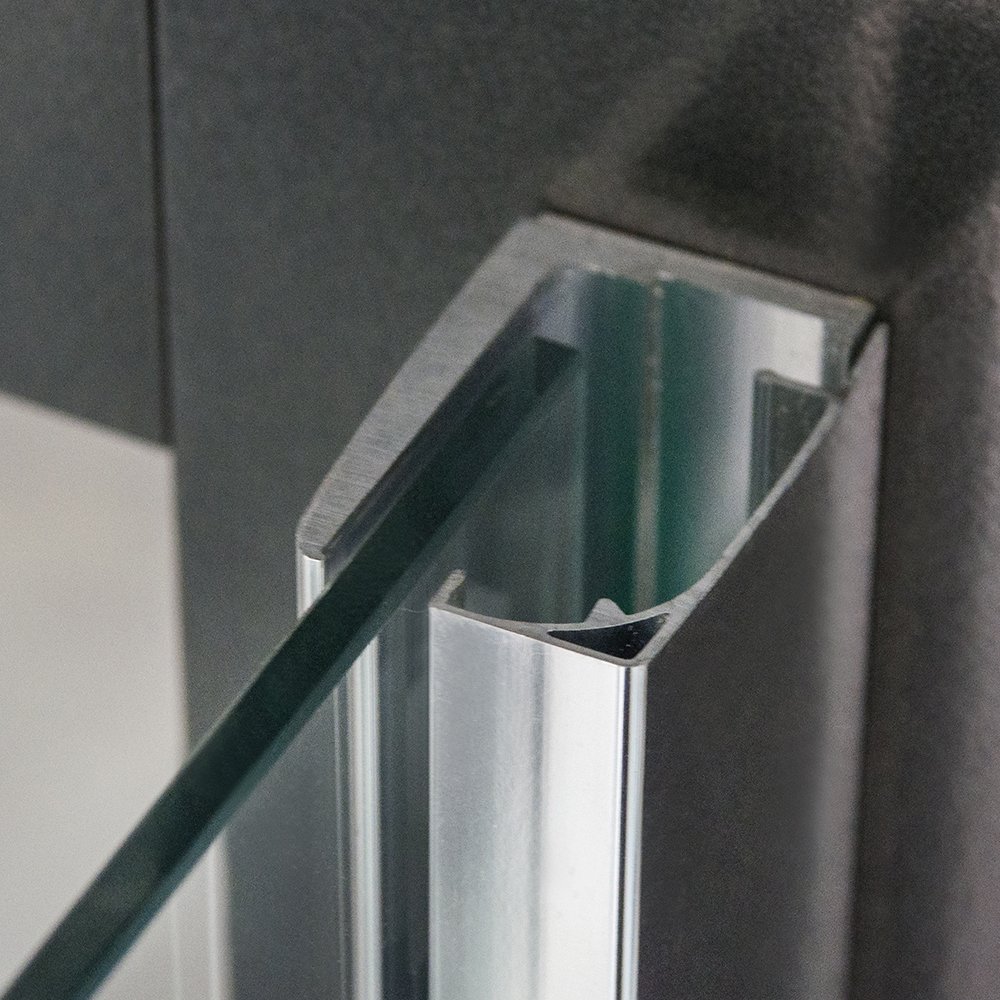

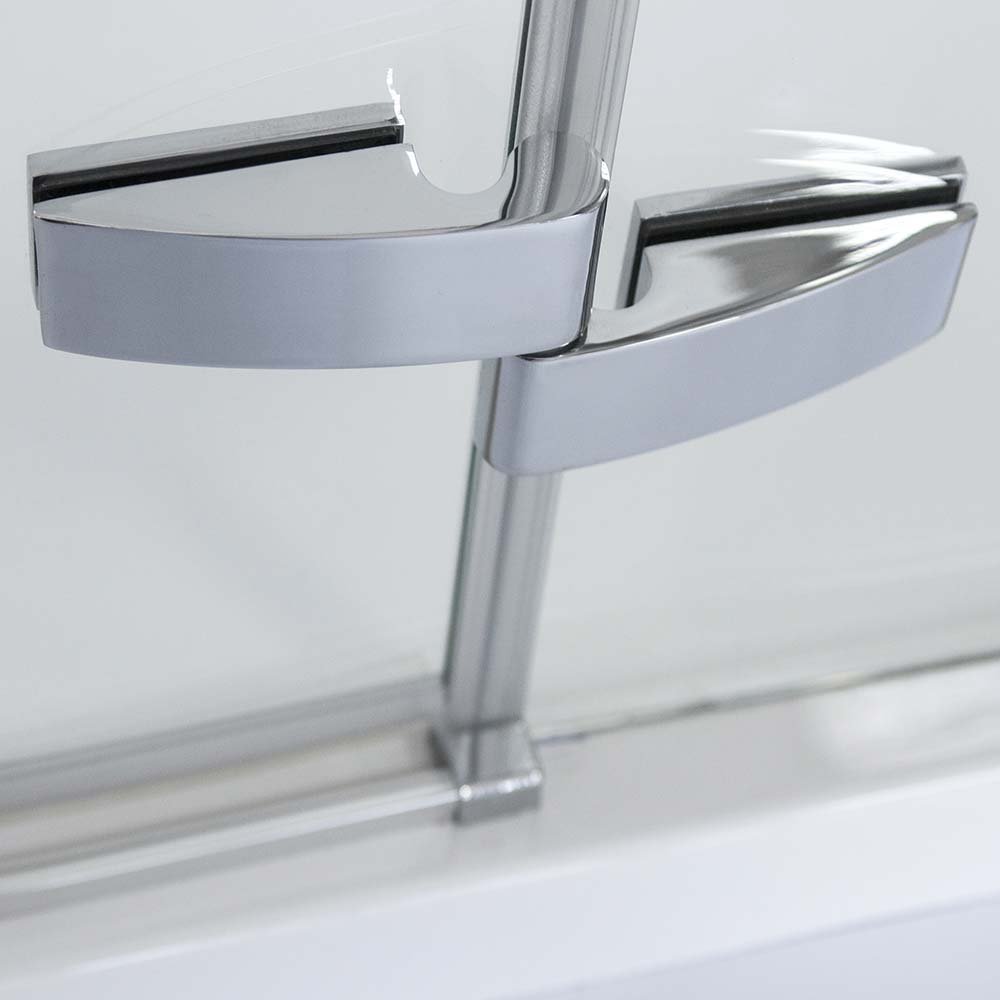

Aluminum profile BrillantDrawing of GBL+GDOP1Fixed Easy Install profile including cover profileSealing silicone flag and sill bar Brillant - open doorCam mechanism hinges - openPrecise magnetic door sealSecurity glass filler TransparentWaterproof silicone seal preventing the water leakageHinges with cam mechanism - closedEasy Install profile without glassSealing silicone flag and sill bar Brillant - closed doorGBL - drawingSupport for stabilityGBP - drawingHighly designed handle in chrome finish
  • Types
    TypeOrder numberOrientationProfileDeliveryGlassInstallation width (y)Height (h)
    GBL1/800133-800000L-00-02 Left Brillant O Transparent 775–800 2017 mm
    ---
    GBL1/900133-900000L-00-02 Left Brillant S Transparent 875–900 2017 mm
    ---
    GBL1/1000133-100000L-00-02 Left Brillant O Transparent 975–1000 2017 mm
    ---
    GBP1/800133-800000P-00-02 Right Brillant O Transparent 775–800 2017 mm
    ---
    GBP1/900133-900000P-00-02 Right Brillant S Transparent 875–900 2017 mm
    ---
    GBP1/1000133-100000P-00-02 Right Brillant O Transparent 975–1000 2017 mm
    ---
    GDOL1/800132-800000L-00-02 Left Brillant O Transparent 775–800 2017 mm
    ---
    GDOL1/900132-900000L-00-02 Left Brillant S Transparent 875–900 2017 mm
    ---
    GDOL1/1000132-100000L-00-02 Left Brillant O Transparent 975–1000 2017 mm
    ---
    GDOL1/1100132-110000L-00-02 Left Brillant O Transparent 1075–1100 2017 mm
    ---
    GDOL1/1200132-120000L-00-02 Left Brillant O Transparent 1175–1200 2017 mm
    ---
    GDOL1/1300132-130000L-00-02 Left Brillant O Transparent 1275–1300 2017 mm
    ---
    GDOL1/1400132-140000L-00-02 Left Brillant O Transparent 1375–1400 2017 mm
    ---
    GDOL1/1500132-150000L-00-02 Left Brillant O Transparent 1475–1500 2017 mm
    ---
    GDOP1/800132-800000P-00-02 Right Brillant O Transparent 775–800 2017 mm
    ---
    GDOP1/900132-900000P-00-02 Right Brillant S Transparent 875–900 2017 mm
    ---
    GDOP1/1000132-100000P-00-02 Right Brillant O Transparent 975–1000 2017 mm
    ---
    GDOP1/1100132-110000P-00-02 Right Brillant O Transparent 1075–1100 2017 mm
    ---
    GDOP1/1200132-120000P-00-02 Right Brillant O Transparent 1175–1200 2017 mm
    ---
    GDOP1/1300132-130000P-00-02 Right Brillant O Transparent 1275–1300 2017 mm
    ---
    GDOP1/1400132-140000P-00-02 Right Brillant O Transparent 1375–1400 2017 mm
    ---
    GDOP1/1500132-150000P-00-02 Right Brillant O Transparent 1475–1500 2017 mm
    ---
    * H – height including supporting elements
    DELIVERY METHOD:
    S  - items in STOCK - delivery in the earliest possible date
    O  - items to ORDER - delivery time should not exceed 14 working days
    Z  - CUSTOMIZED items - delivery time should not exceed 30 working days
    ATTENTION: Nominal sizes of shower enclosures are designed for INSTALLATION ON THE TRAY and they are always assembled with indentation from the edge of the tray. With INSTALLATION ON THE TILES there is a risk, that the size of shower enclosure will be smaller than measured width of the tiles. It is necessary to follow the size charts specified in “TECHNICAL SPECIFICATION” file, which is available to download on the product pages.
  • Download

What are the advantages of GBL+GDOP1, GBP+GDOL1

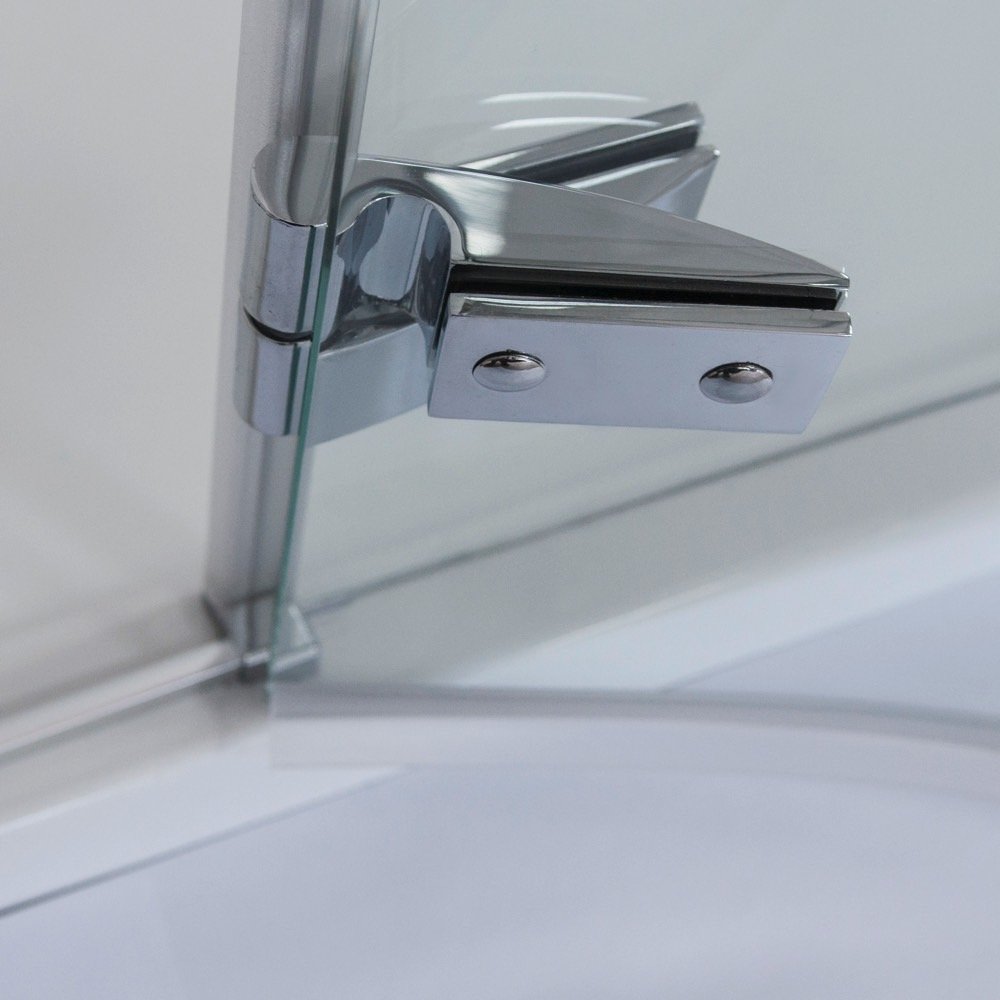

  • Chromium-plated brass hinges with 3-phase lifting mechanism that allows you to lock the door in the open, closed and microventilation position.
  • You can choose from several dimensions of the shower enclosure. If they do not meet your needs, we will come to make measurements for free and produce shower on request for you.
  • Combination of 8mm and 6mm safety glass for maximum durability.

Elegant transparent glass equipped with a special surface treatment RothETC with proper maintenance prevents accumulation of dirt, grease and limescale up to 10 years. Then it is possible to revive glass panes protection with the RothETC Complete Care refresh set. We recommend after showering to wipe the rest of water and shampoo off with the rubber squeegee. Life span of RothETC coating is then much longer.
