GDNL1, GDNP1

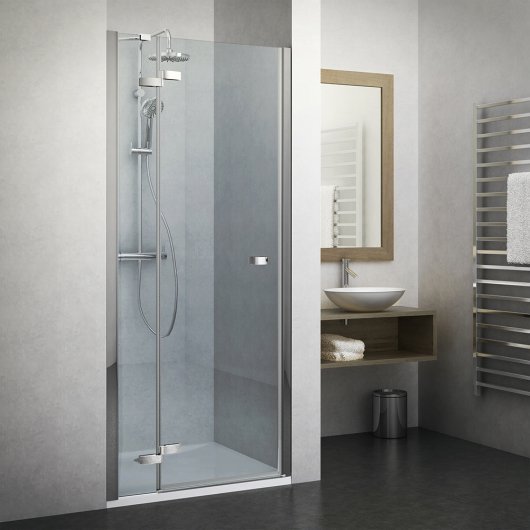

Frameless single shower door for a niche use special Easy Install profiles for easy installation and tight connection of glass with the wall. Transparent glass has a special RothETC surface treatment, which prevents accumulation of limescale, dirt and grease. Chromium-plated brass hinges with 3-phase lifting mechanism that allows you to lock the door in the open, closed and microventilation  position.
GDNL1, GDNP1

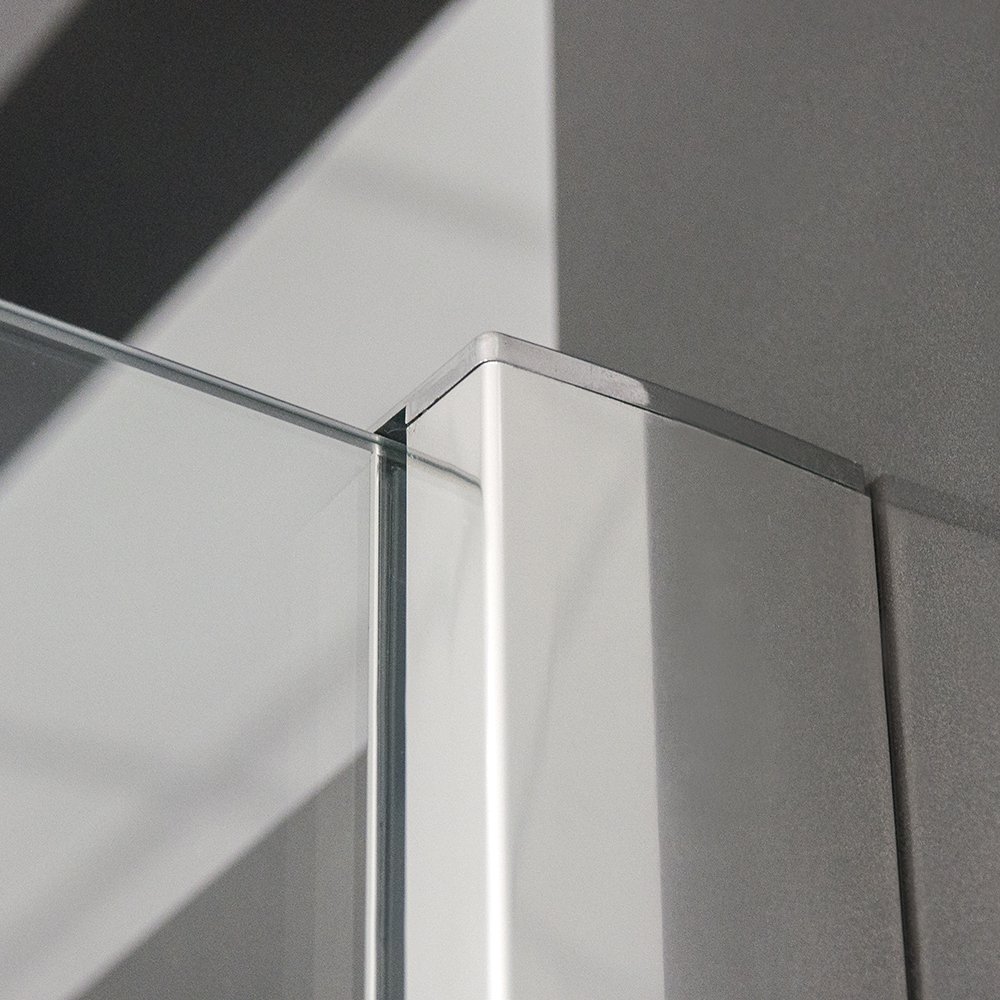

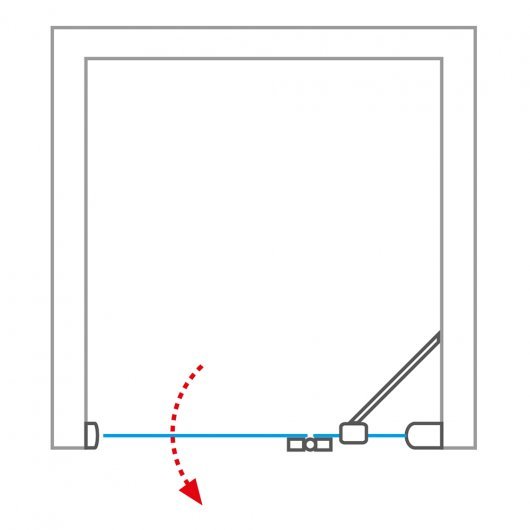

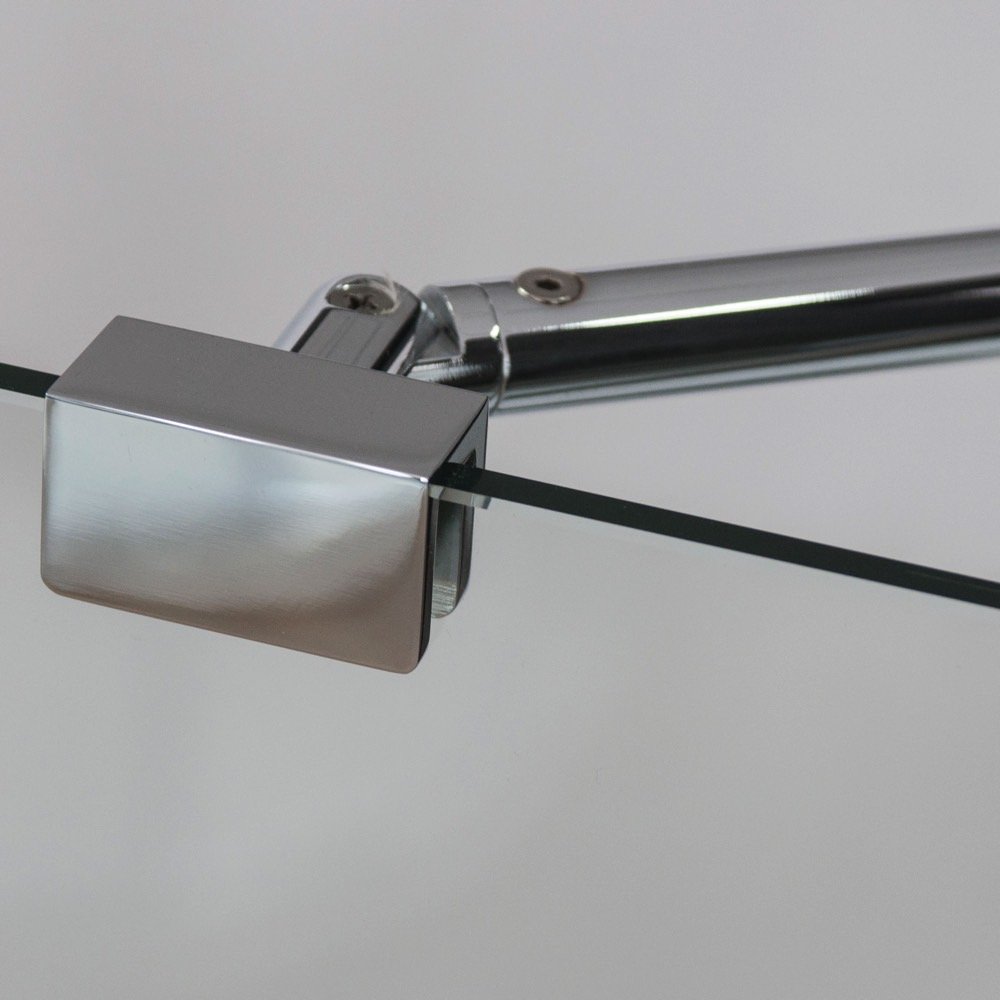

Strut in chrome finishFixed Easy Install profile including cover profileEasy Install profile in Brillant designHinges with cam mechanism - closedSecurity glass filler TransparentEasy Install profile without glassCam mechanism hinges - openSealing silicone flag and sill bar Brillant - closed doorWaterproof silicone seal preventing the water leakageStrut in Chrome finishSealing silicone flag and threshold bar Brillant - open doorGDNP1 - drawing
  • Types

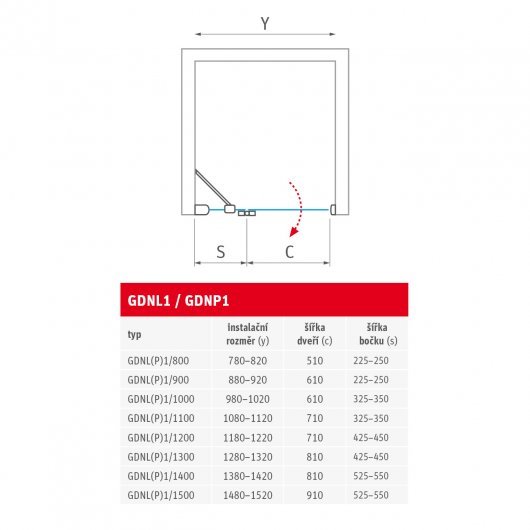

    TypeOrder numberHeight (h)Door width (c)ProfileDeliverySide part width (s)OrientationGlassInstallation width (y)
    GDNL1/800134-800000L-00-02 2017 mm 510 Brillant O 225–250 Left Transparent 780–820
    ---
    GDNL1/900134-900000L-00-02 2017 mm 610 Brillant O 225–250 Left Transparent 880–920
    ---
    GDNL1/1000134-100000L-00-02 2017 mm 610 Brillant O 325–350 Left Transparent 980–1020
    ---
    GDNL1/1100134-110000L-00-02 2017 mm 710 Brillant O 325–350 Left Transparent 1080–1120
    ---
    GDNL1/1200134-120000L-00-02 2017 mm 710 Brillant O 425–450 Left Transparent 1180–1220
    ---
    GDNL1/1300134-130000L-00-02 2017 mm 810 Brillant O 425–450 Left Transparent 1280–1320
    ---
    GDNL1/1400134-140000L-00-02 2017 mm 810 Brillant O 525–550 Left Transparent 1380–1420
    ---
    GDNL1/1500134-150000L-00-02 2017 mm 910 Brillant O 525–550 Left Transparent 1480–1520
    ---
    GDNP1/800134-800000P-00-02 2017 mm 510 Brillant O 225–250 Right Transparent 780–820
    ---
    GDNP1/900134-900000P-00-02 2017 mm 610 Brillant O 225–250 Right Transparent 880–920
    ---
    GDNP1/1000134-100000P-00-02 2017 mm 610 Brillant O 325–350 Right Transparent 980–1020
    ---
    GDNP1/1100134-110000P-00-02 2017 mm 710 Brillant O 325–350 Right Transparent 1080–1120
    ---
    GDNP1/1200134-120000P-00-02 2017 mm 710 Brillant O 425–450 Right Transparent 1180–1220
    ---
    GDNP1/1300134-130000P-00-02 2017 mm 810 Brillant O 425–450 Right Transparent 1280–1320
    ---
    GDNP1/1400134-140000P-00-02 2017 mm 810 Brillant O 525–550 Right Transparent 1380–1420
    ---
    GDNP1/1500134-150000P-00-02 2017 mm 910 Brillant O 525–550 Right Transparent 1480–1520
    ---
    * H – height including supporting elements
    DELIVERY METHOD:
    S  - items in STOCK - delivery in the earliest possible date
    O  - items to ORDER - delivery time should not exceed 14 working days
    Z  - CUSTOMIZED items - delivery time should not exceed 30 working days
    ATTENTION: Nominal sizes of shower enclosures are designed for INSTALLATION ON THE TRAY and they are always assembled with indentation from the edge of the tray. With INSTALLATION ON THE TILES there is a risk, that the size of shower enclosure will be smaller than measured width of the tiles. It is necessary to follow the size charts specified in “TECHNICAL SPECIFICATION” file, which is available to download on the product pages.
  • Download

Shower doors GDNL1, GDNP1 offer

  • Panes are of 8mm safety glass with RothETC technology to effect rapid runoff of water. With a correct maintenance is the life span of this technology up to 10 years and could be revived by treatment set Complete Care.
  • The latest technology of chromed brass hinges and BRILLANT profiles.
  • Generous entrance space due to door production up to a width of 1500 mm.

Transparent glass and the absence of frames adds to GDNL1, GDNP1 shower door the hallmark of luxury and timelessness. Shower door can be installed either on the shower tray, which is not included, so directly on the floor. If you do not like sizes of standard shower door for a niche, send us the plan or a technical drawing of bathroom and we will create an offer for your atypical shower door.
