CI D2L_CI D2R

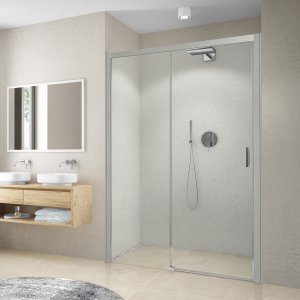

Sliding shower door for installation in a niche

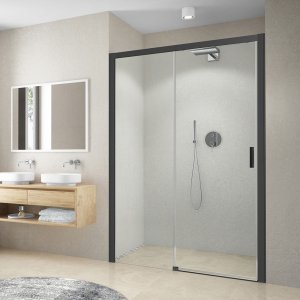

The latest CARIBA LINE series offers a wide range of options for solutions for your bathroom - and now also in the variant of Black elox! The processing of all technical parts is truly perfect - high-quality, innovative rollers, adjustable aluminum wall profiles and a stable frame with convenient barrier-free access. The series uses 6mm ESG Temperedglass with an applied RothETC protective layer. Easy maintenance through the modern way of the door opening, a two-meter standard height and in addition, a generous selection of installation dimensions. You will discover all this and much more if you choose one of the perfect products from this range.

ESG Safety glass
Hardened ESG glass
ESG Safety glass
Hardened ESG glass
Bottom tilting
Bottom tilting
Bottom tilting
Bottom tilting
Glass protection
Glass protection
Glass protection
Glass protection
Barrier-free solution
Barrier-free solution
Barrier-free solution
Barrier-free solution
Guarantee
Guarantee
Guarantee
Guarantee
CI D2L_CI D2R
  • Types
    TypeOrder numberEntrance size (c)Dimension (mm)Side part width (s)GlassInstallation width (y)DeliveryHeight (h)Profile
    CI D2L/1200CI D2L 120200 VPE 485 1200 530–555 Transparent 1160–1210 O 2002 mm Brillant
    ---
    CI D2L/1200CI D2L 120200 NPE 485 1200 530–555 Transparent 1160-1210 O 2002 mm Black Elox
    ---
    CI D2L/1300CI D2L 130200 VPE 535 1300 580–605 Transparent 1260–1310 O 2002 mm Brillant
    ---
    CI D2L/1300CI D2L 130200 NPE 535 1300 580–605 Transparent 1260–1310 O 2002 mm Black Elox
    ---
    CI D2L/1400CI D2L 140200 VPE 585 1400 630–655 Transparent 1360–1410 O 2002 mm Brillant
    ---
    CI D2L/1400CI D2L 140200 NPE 585 1400 630–655 Transparent 1360–1410 O 2002 mm Black Elox
    ---
    CI D2L/1500CI D2L 150200 VPE 635 1500 680–705 Transparent 1460–1510 O 2002 mm Brillant
    ---
    CI D2L/1500CI D2L 150200 NPE 635 1500 680–705 Transparent 1460–1510 O 2002 mm Black Elox
    ---
    CI D2L/1600CI D2L 160200 VPE 685 1600 730–755 Transparent 1560–1610 O 2002 mm Brillant
    ---
    CI D2L/1600CI D2L 160200 NPE 685 1600 730–755 Transparent 1560–1610 O 2002 mm Black Elox
    ---
    CI D2R/1200CI D2R 120200 VPE 485 1200 530–555 Transparent 1160–1210 O 2002 mm Brillant
    ---
    CI D2R/1200CI D2R 120200 NPE 485 1200 530–555 Transparent 1160-1210 O 2002 mm Black Elox
    ---
    CI D2R/1300CI D2R 130200 VPE 535 1300 580–605 Transparent 1260–1310 O 2002 mm Brillant
    ---
    CI D2R/1300CI D2R 130200 NPE 535 1300 580–605 Transparent 1260–1310 O 2002 mm Black Elox
    ---
    CI D2R/1400CI D2R 140200 VPE 585 1400 630–655 Transparent 1360–1410 O 2002 mm Brillant
    ---
    CI D2R/1400CI D2R 140200 NPE 585 1400 630–655 Transparent 1360–1410 O 2002 mm Black Elox
    ---
    CI D2R/1500CI D2R 150200 VPE 635 1500 680–705 Transparent 1460–1510 O 2002 mm Brillant
    ---
    CI D2R/1500CI D2R 150200 NPE 635 1500 680–705 Transparent 1460–1510 O 2002 mm Black Elox
    ---
    CI D2R/1600CI D2R 160200 VPE 685 1600 730–755 Transparent 1560–1610 O 2002 mm Brillant
    ---
    CI D2R/1600CI D2R 160200 NPE 685 1600 730–755 Transparent 1560–1610 O 2002 mm Black Elox
    ---
    * H – height including supporting elements
    DELIVERY METHOD:
    S  - items in STOCK - delivery in the earliest possible date
    O  - items to ORDER - delivery time should not exceed 14 working days
    Z  - CUSTOMIZED items - delivery time should not exceed 30 working days
    ATTENTION: Nominal sizes of shower enclosures are designed for INSTALLATION ON THE TRAY and they are always assembled with indentation from the edge of the tray. With INSTALLATION ON THE TILES there is a risk, that the size of shower enclosure will be smaller than measured width of the tiles. It is necessary to follow the size charts specified in “TECHNICAL SPECIFICATION” file, which is available to download on the product pages.
  • Download
    Technical specifications CI D2L(R)pdf70.31 KB
    Installation instructions CI D2L(R)pdf3.99 MB

We are introducing to you our new product CI D2L_CI D2R

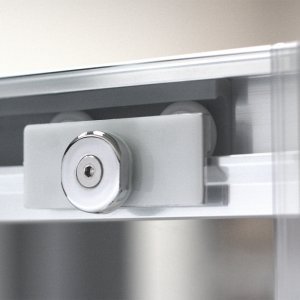

The shower door is produced in five sizes, in both right and left versions. The combination of a stable construction and a frameless lower part expands the possibilities of use. You can also have it as a barrier-free enclousure. We have equipped the shower door with tilting system at the bottom part, which will make maintenance much easier for you. The newly designedtwo-rollers drive will surely excite you. Thanks to their solution, they allow flawless and smooth movement of the door and are highly durable.

We offer the ESG Tempered glasses in a timeless transparent (clear) design. The elegant appearance of the shower door is underlined by the designer handle. The door has a precise magnetic seal between the door and the profile. Also, the sealing silicone flag on the bottom of the door prevents water leakage.

The exact height including anchoring elements is 2002 mm.

Do you want to try combining this door with one or even two solid walls? Then we will definitely please you, because we can also fulfill such a wish: Fixed side wall with CI FXP corner profile.
